Tellus Ceram suggests you a system based on a dry cement free technology of brick assembly and car mounting thanks to a standardized system of male/female notches on each brick (similar to plastic toys for children). DRILOK bricks can be shaped in a large range of refractories from insulating to dense materials.

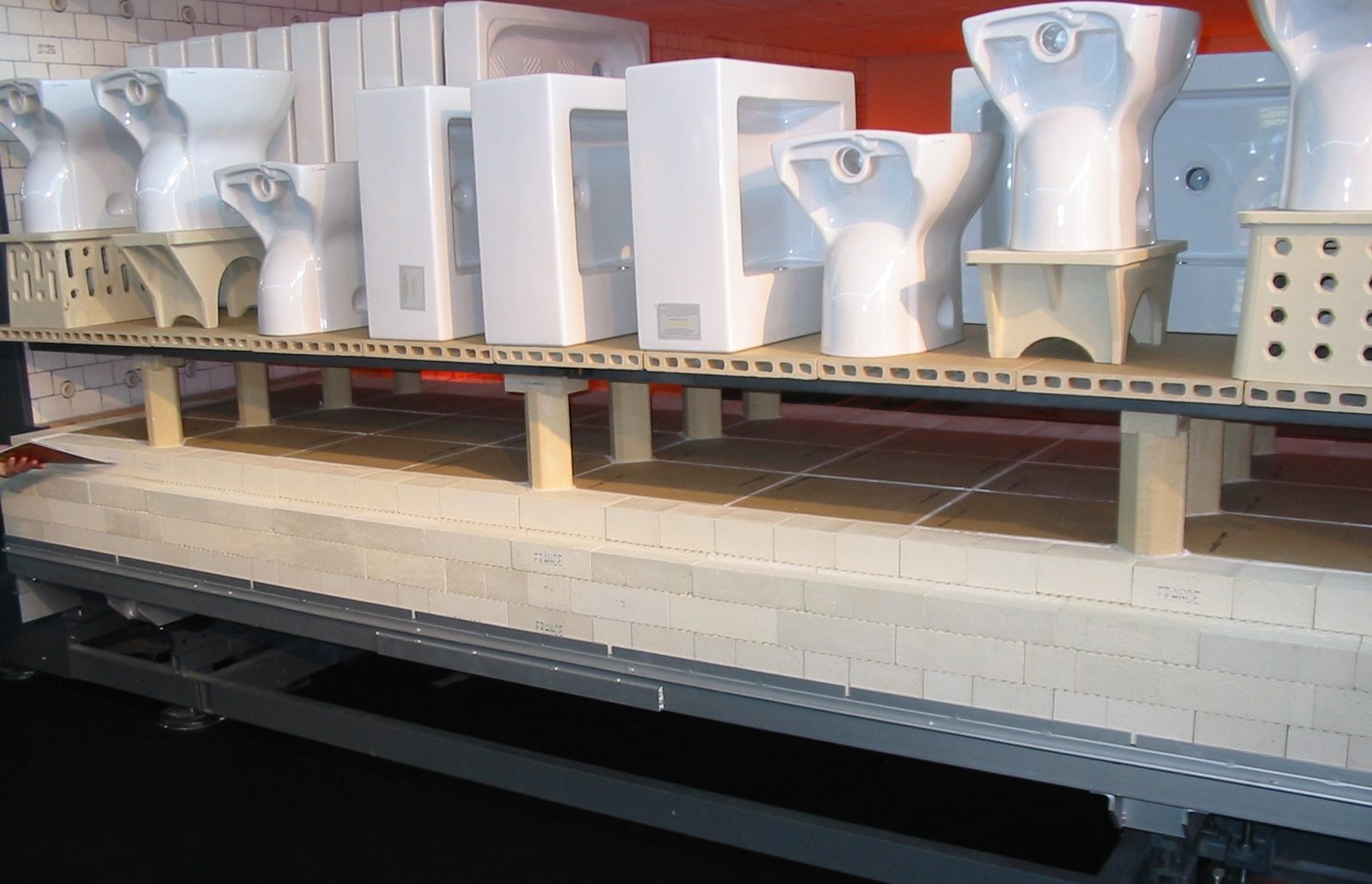

Based on a set of bricks embedding to each other, this system doesn’t need the use of jointing products and is similar to the system of the modular fitting. It can be set up and taken off at will, and make it possible to create for instance cars for tunnel kilns of modern and robust conception.
Our DRILOK system is characterized and is conform to the norms of the classifications of the European Federation of Manufacturers of Refractory Products.
Its main advantages are: :
• an easy and modular constructione
• a lower maintenance cost,
• a high mechanical strength…
TELLUS-CERAM has an design department for the realization of the plans of your project.
Insulating Drilok
Maximum Classified Temperature : 1350 ° C
Bulk density (g/cm³) : 0.95
Cold Crushing Strength : 5
Alumina : 47.5%
Recommanded Mortar : TH1500
Maximum Classified Temperature : 1400°C
Bulk density (g/cm³) : 1.25
Cold Crushing Strength : 23
Alumina : 48%
Recommanded Mortar : TH1500
Maximum Classified Temperature : 1550°C
Bulk density (g/cm³) : 1.33
Cold Crushing Strength : 15
Alumina : 61%
Maximum Classified Temperature : 1850°C
Bulk density (g/cm³) : 1.50
Cold Crushing Strength : 10
Alumina : 92%
Maximum Classified Temperature : 1850°C
Bulk density (g/cm³) : 1.55
Cold Crushing Strength : 13.5
Alumina : 98.5%
Recommanded Mortar : TH1850
Dense Drilok
Maximum Classified Temperature : 1400°C
Bulk density (g/cm³) : 2.25
Alumina : 42%
Thermal shock resistance: Very good
Maximum Classified Temperature : 1580°C
Bulk density (g/cm³) : 2.5
Alumina : 61%
Thermal shock resistance: Good
Maximum Classified Temperature : 1730°C
Bulk density (g/cm³) : 2.5
Alumina : 65%
Thermal shock resistance: Good
Maximum Classified Temperature : 1800°C
Bulk density (g/cm³) : 3
Cold Crushing Strength : 90
Alumina : 85%
Recommanded Mortar : TH1850
Maximum Classified Temperature : 1830°C
Bulk density (g/cm³) : 3.1
Cold Crushing Strength : 65
Alumina : 91%
Recommanded Mortar : TH1850
- An assembly system of refractories without cement for all modular construction (ceramic industries and others).
- Material from cordierite or other mineral components giving very high performance to the resistance of thermal impact (from 1200°C to 1850°C).
